What is C.P.I. Seperator?

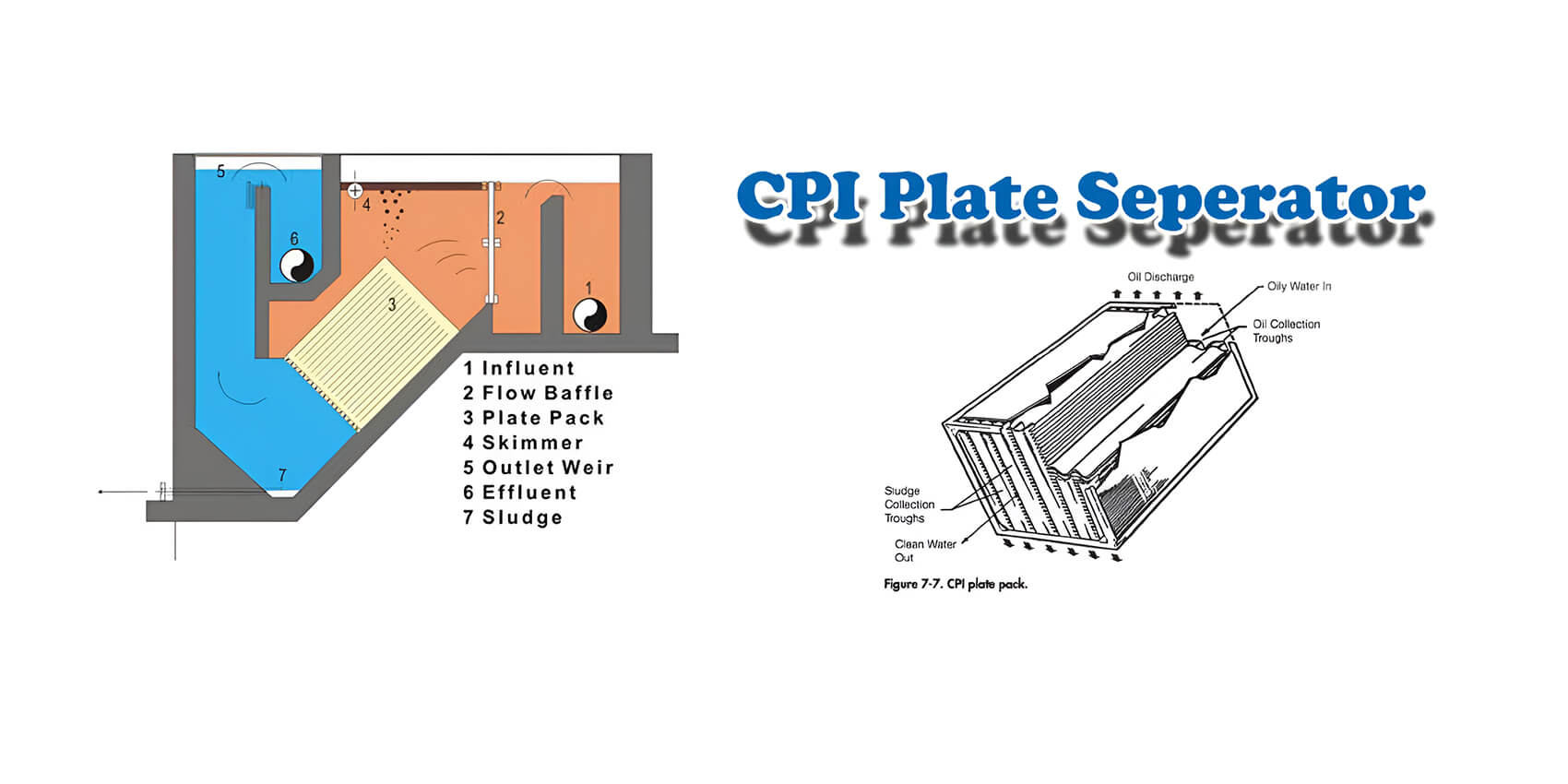

Tissolved Air Flotation (DAF)he corrugated plate pack in a CPI separator, used in Oily water treatment for removal of free oil. It consists number of parallel corrugated plates. A Plate pack is a housing of flat plastic plates (strengthened by resins) and stiffened by a frame made from plastic material (strengthened by resins) and/or stainless steel.
The number of plates in a Plate pack is determined by various calculations as well as based on experience on various effluents and applications. The number of plates per pack is also factored to a certain extent on economy of size of the separator. The number of Plate packs per CPI separator is calculated based on the effluent flow and its characteristics to the unit.
The liquid to be treated flows through the spaces between the Corrugated Plates in each Plate pack. Ideal condition for separation is achieved in the TPI (Tilted plate interceptor)/CPI (Corrugated plate interceptor) separator by simulating a laminar flow condition through the plate pack.

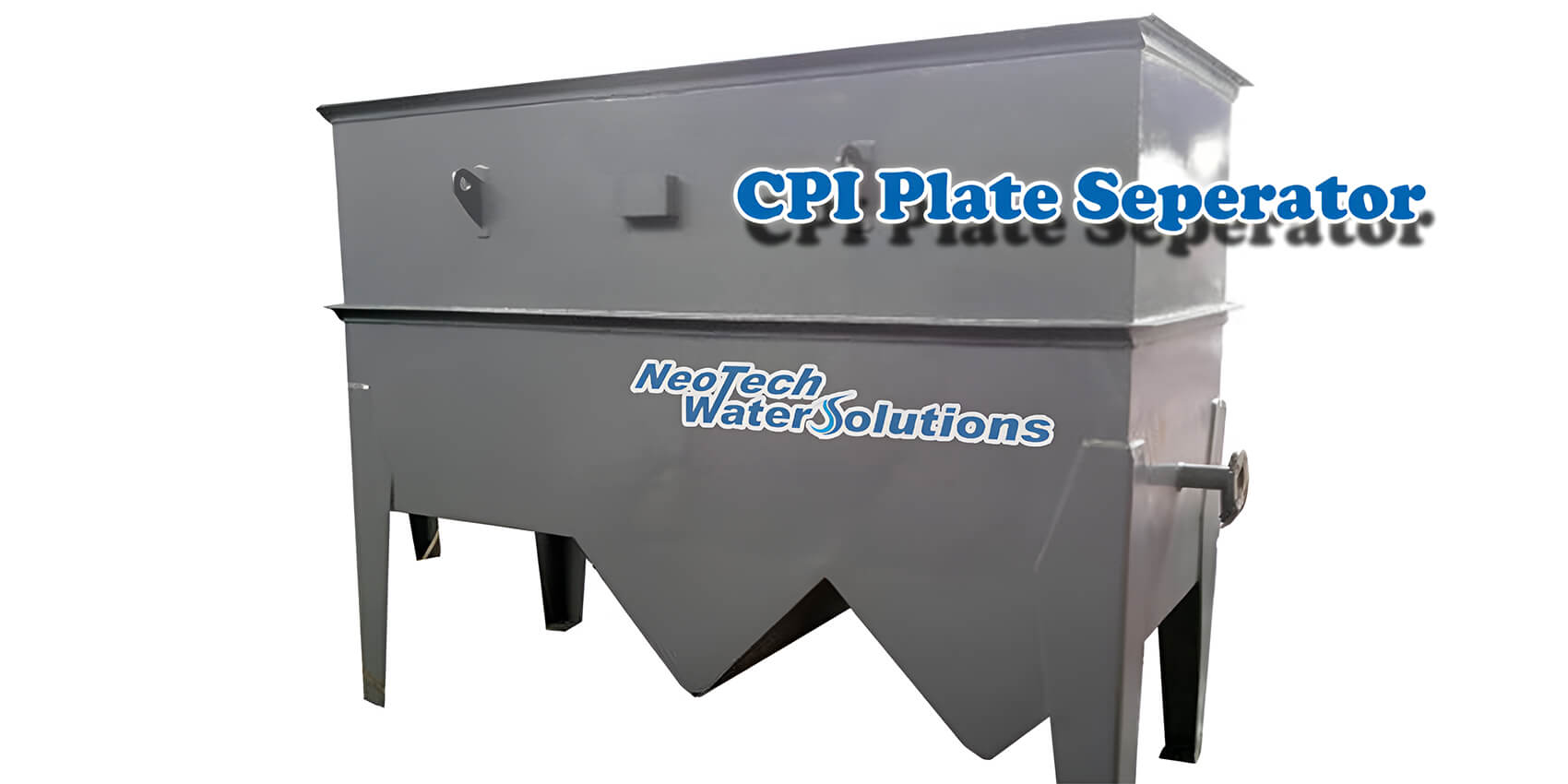

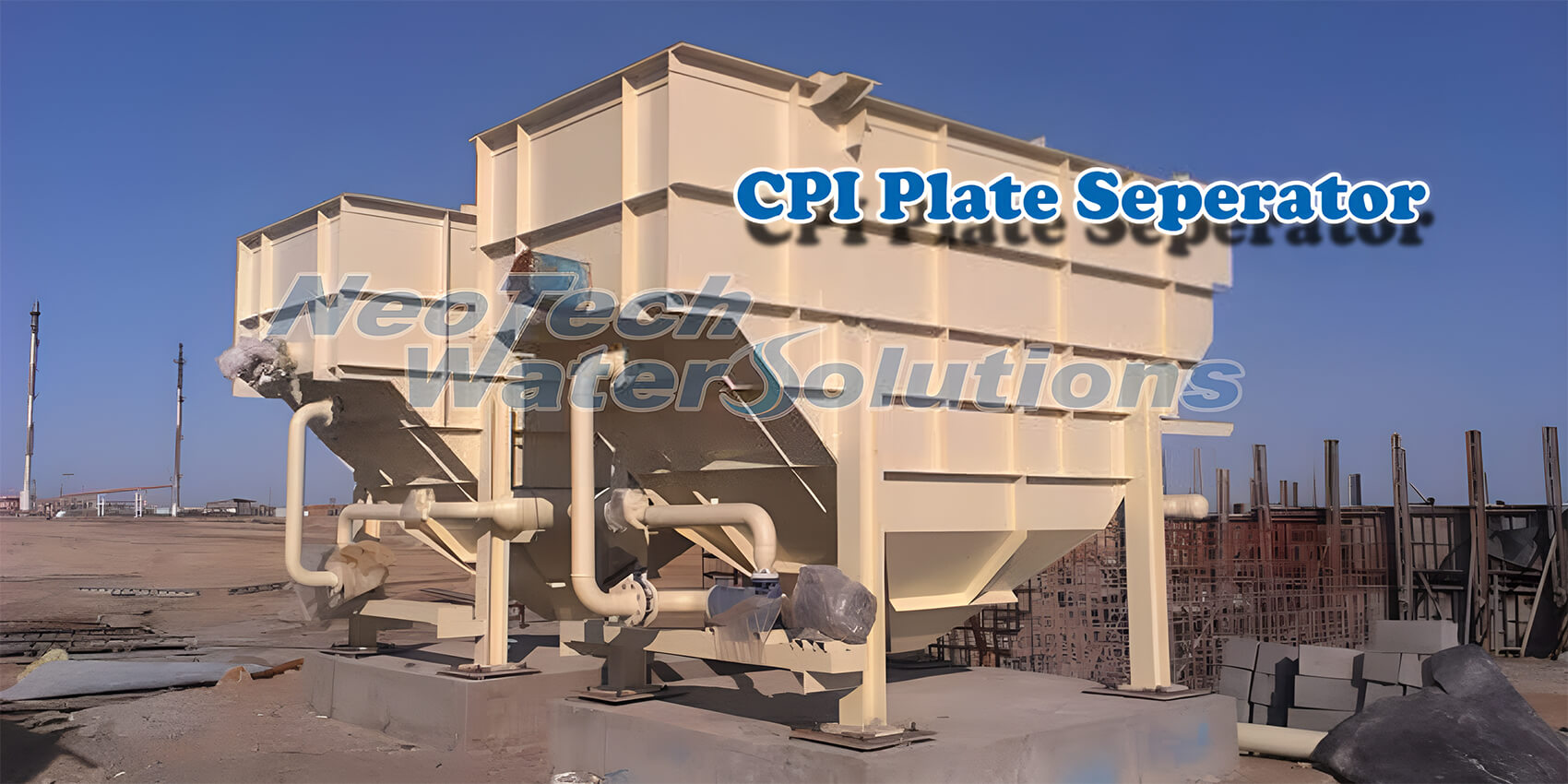

C.P.I. Seperator
Gravity separation is the most straightforward method of effluent treatment and is, therefore, utilised widely in industry for the separation of settling and/or flotable impurities from a carrier liquid. In the majority of cases the separators are constructed in the form of a rectangular tank.
Key Features
Advantages Of Designed TPI/ CPI Separators in Oily Water Treatment System: like ...
